Overview

GE214 Fused Glass Quartz Dome
Part Number - RQD-269
Length in mm - 269
Length in in - 10.6
Colour Clear
Thermal Expansion 5.5 10-7cm/ °C
Therm. Conductivity 1.4 W/m °C
Specific Heat 670 J/kg °C
Softening Point 1683 °C
Strain Point 1120 °C
Density 2.2 kg/m3
Refraction Index 1.4585

Specifications

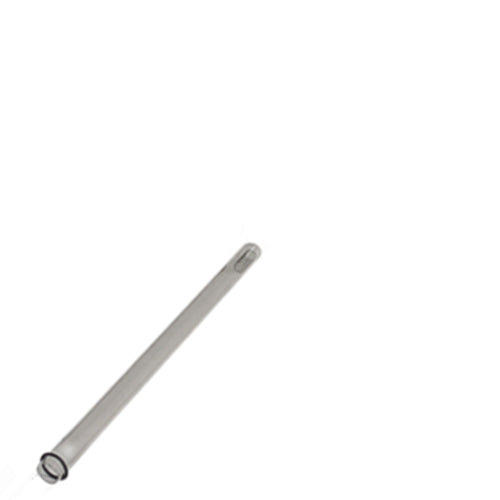

UV-1 Replacement Quartz Dome RQD-269

The Wyckomar Quartz Dome together with the Oring keep the water sealed inside the UV reaction chamber and away from the UV lamp, allowing the UV rays to irradiate the water column flowing through the chamber.

The dome comes with a spring inside to prevent the UV lamp from cracking the quartz upon insertion.

Quartz Dome | For The Athabasca | UV1 | RQD-269 | Wyckomar

Quartz Dome | For The Athabasca | UV1 | RQD-269 | Wyckomar

Field-tested
Quality Engineered
Warrantied

Pricing available through our dealer network — sign in to access your account.
Interested in becoming a dealer? Click here to learn more.

$32.00 USD

$32.00 USD

Shipping calculated at checkout.

Are you a customer looking to purchase?

Click here to find your nearest wyckomar dealer

Overview

GE214 Fused Glass Quartz Dome
Part Number - RQD-269
Length in mm - 269
Length in in - 10.6
Colour Clear
Thermal Expansion 5.5 10-7cm/ °C
Therm. Conductivity 1.4 W/m °C
Specific Heat 670 J/kg °C
Softening Point 1683 °C
Strain Point 1120 °C
Density 2.2 kg/m3
Refraction Index 1.4585

Specifications

UV-1 Replacement Quartz Dome RQD-269

The Wyckomar Quartz Dome together with the Oring keep the water sealed inside the UV reaction chamber and away from the UV lamp, allowing the UV rays to irradiate the water column flowing through the chamber.

The dome comes with a spring inside to prevent the UV lamp from cracking the quartz upon insertion.
