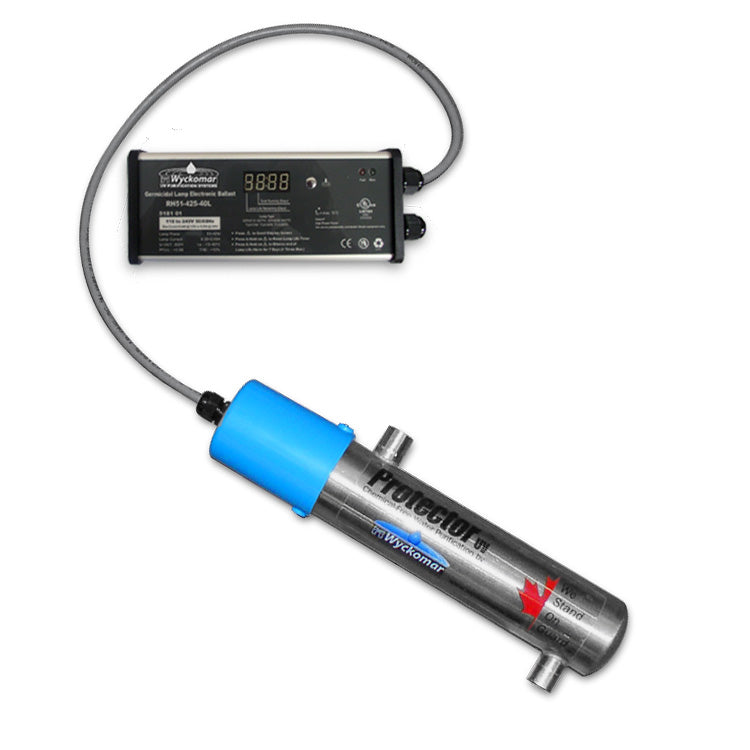

The Athabasca | Purifier | UV1 | UV-1 | Wyckomar
The Athabasca | Purifier | UV1 | UV-1 | Wyckomar
Interested in becoming a dealer? Click here to learn more.
Share this product
Overview
Overview
Specifications
Specifications
- Previously known as Model UV-1 | P1/QD4E-1/2
- Flow Range: 2.4 -5.8 GPM / 9 - 22 LPM
- Chamber Material: 304L SS (316L SS available)
- UV Dose (95% UVT): 16 mJ/cm2 at 5.8 GPM / 22 LPM,
30 mJ/cm2 at 3.1 GPM / 12 LPM, 40 mJ/cm2 at 2.4 GPM / 9 LPM - Electronic Ballast w/ Operation Count: 4-BE-425-ECO-R
- UV Replacement Lamp: RL-12/254T5
- Replacement Quartz Dome: RQD-269
- Plumbing: 3/8" FNPT In/Out
More From This Collection
The Athabasca | Purifier | UV1 | UV-1 | Wyckomar
Choose your option
The Athabasca | Basic System | UV1 | SYS1 | Wyckomar
Choose your option
Sediment Filter | For The Athabasca, The Huron & Solar Tote | UV1, UV250 | WFS10-5SP | Wyckomar
Choose your option
Carbon Block Filter | For The Athabasca | UV1 | WFC10-05CB | Wyckomar
Choose your option
Lamp | For The Athabasca | UV1 | RL-12/254T5 | Wyckomar
Choose your option
Quartz Dome | For The Athabasca | UV1 | RQD-269 | Wyckomar
Choose your option
Find the Right System for Your Home
Compare our most popular UV water treatment systems to determine the best fit based on your water usage, household size, and demand.
|
|
|
|
|
Up to 15 LPM - 4 GPM |
Up to 30 LPM - 8 GPM |
1400Up to 53 LPM - 14 GPM |
|
|
46 mJ/cm2 @ 95 % UVT |
49 mJ/cm2 @ 95% UVT |
40 mJ/cm2 @ 95 % UVT |
|
|
110 - 240 Volt AC / 50 - 60 Hz |
110 - 240 Volt AC / 50 - 60 Hz |
110 - 240 Volt AC / 50 - 60 Hz |
|
|
AC: Electronic Ballast w/ Lamp Out |
Electronic Ballast w/ Lamp Out |
Electronic Ballast w/ Lamp Out |
|
|
Low-Pressure UVC @23Watts, 425 mA (Part# RL-23/436T5) |
Low-Pressure UVC @40 Watts, 425 mA (Part# RL-40/867T5) |
Low-Pressure UVC @51 Watts, 800 mA (Part# RL-51/540T5) |
|
|
10" SlimLine (L 9-3/4" OD 2-1/2") w/ Pressure Relief |
20" SlimLine (L20" OD 2-1/2") w/ Pressure Relief |
10" BigBlue (L 9-3/4" OD 4-1/2") w/ Pressure Relief |
|
|
SS Flexible Hose Part # 10-FF12 |
Integrated Part # 10-FM24 |
Integrated Part# 10-FF12-1 |
|
|
3/4” MNPT In/Out |
3/4” MNPT In/Out |
1” MNPT In/Out |
