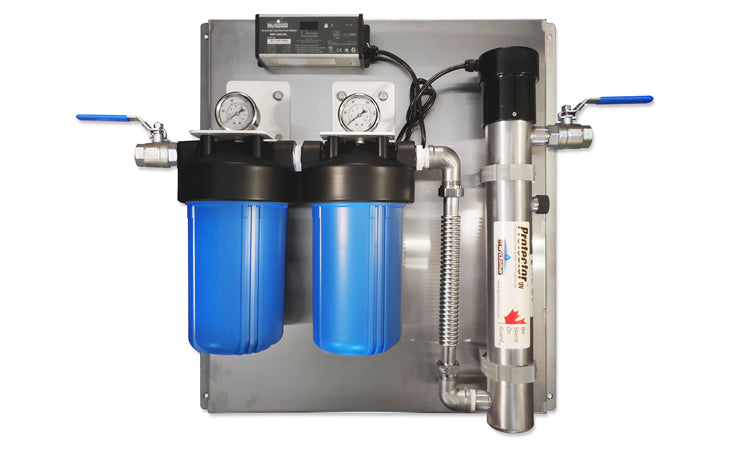

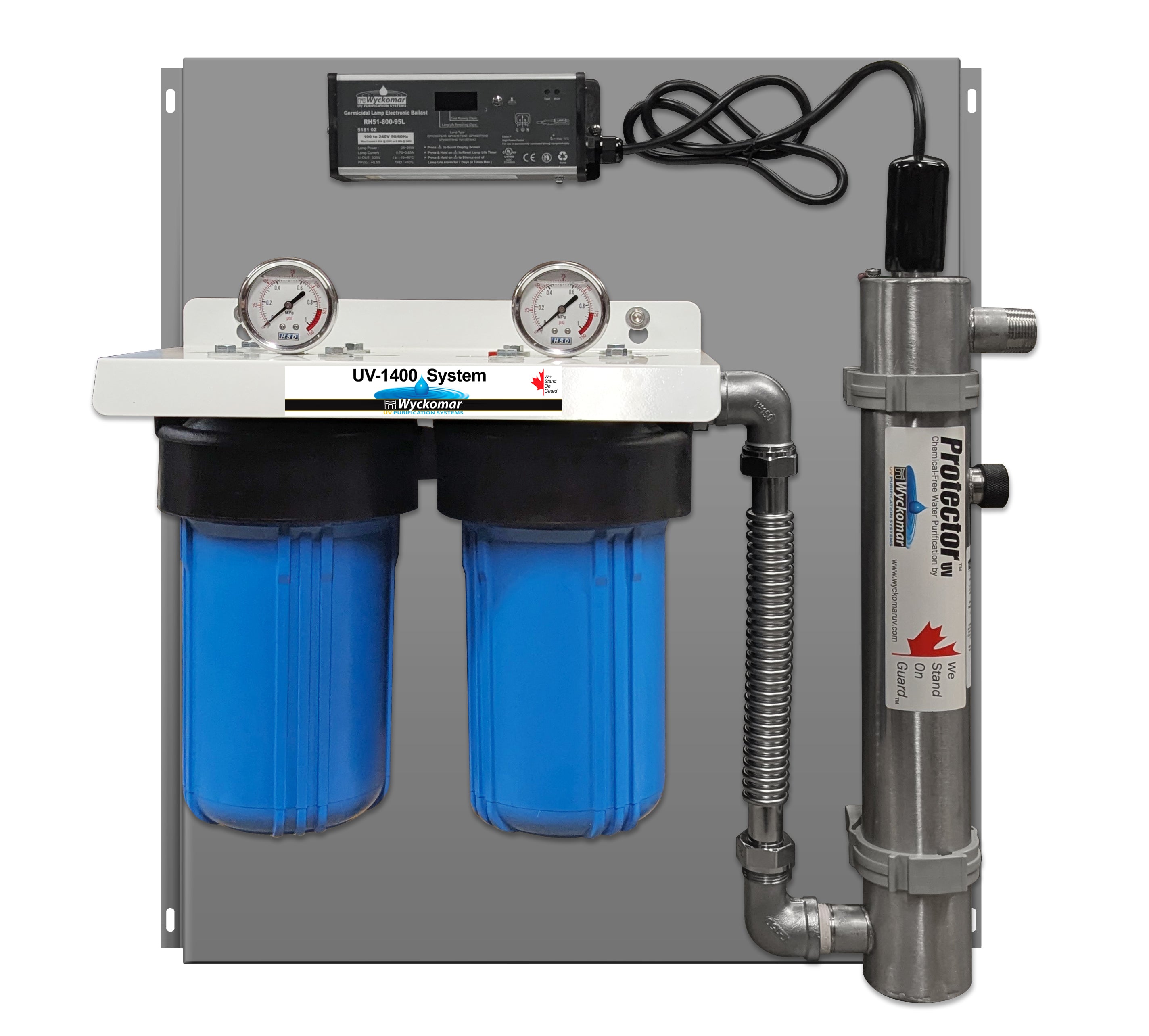

- Previously known as Model UV-1400 | Pre-Assembled | SYS1400-POU-1/2
- Flow Rate: (limited by filter selection)
- up to 14 GPM / 53 LPM
- up to 14 GPM / 53 LPM
- Filtration System: 10" BigBlue

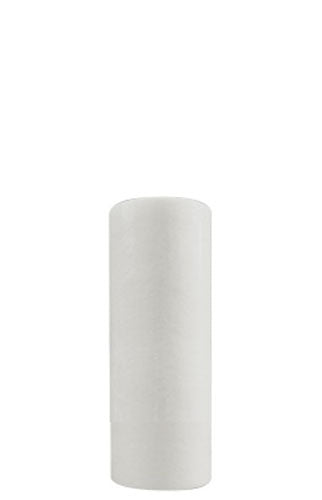

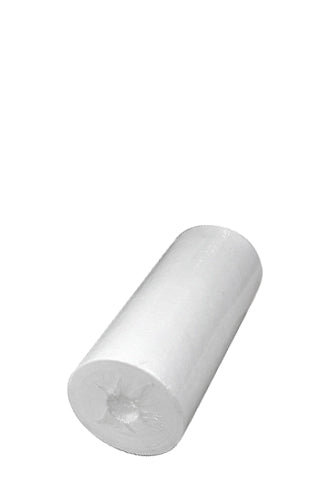

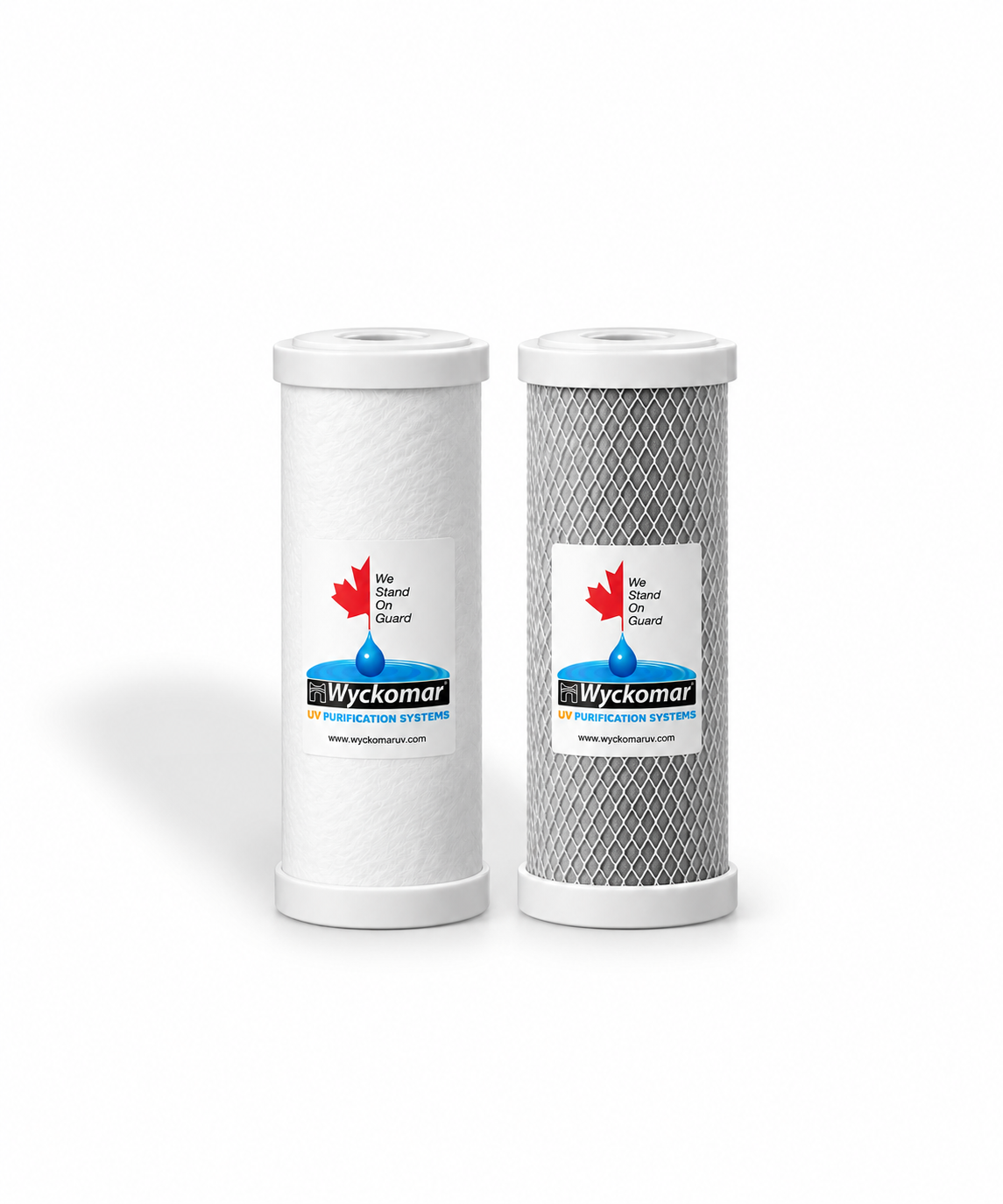

- Sediment Filter: 5 Micron Melt Blown

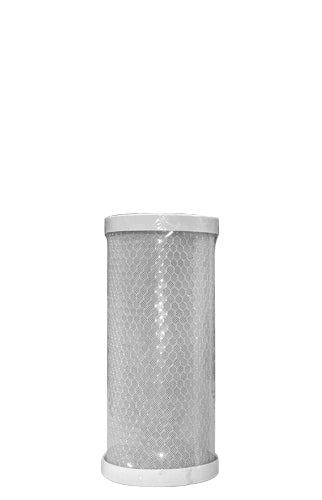

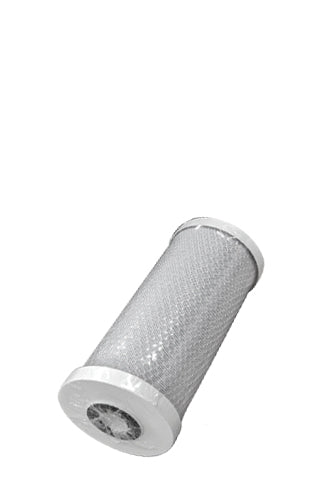

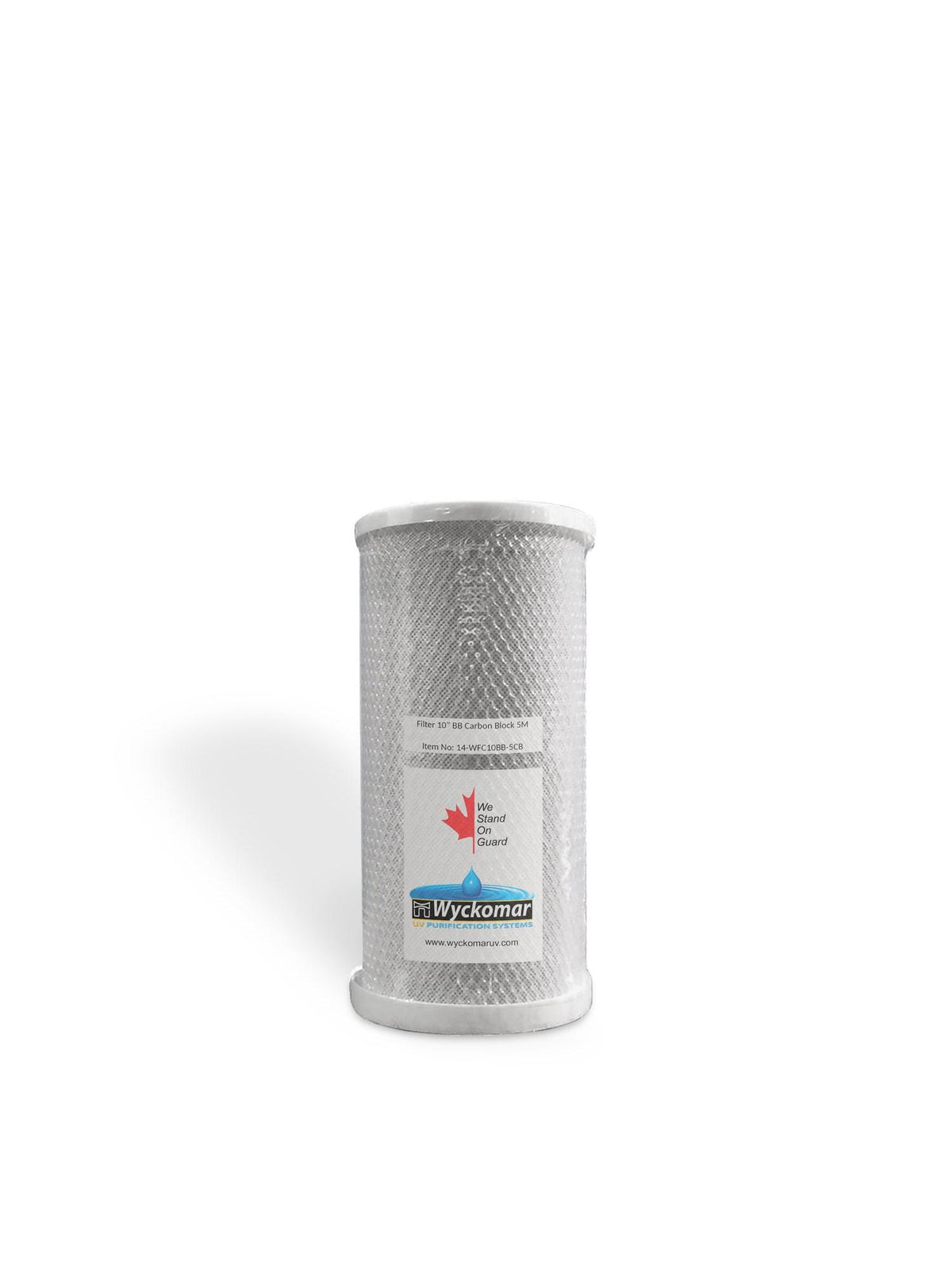

- Carbon Filter: 5 Micron Carbon Block
- Electronic Ballast w/ Operation Count: 4-BE800-14/30ECO

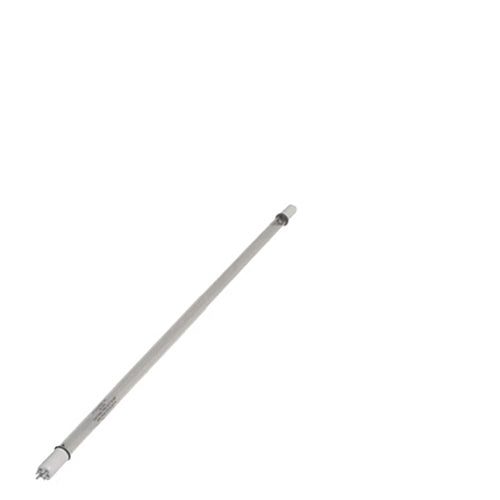

- UV Replacement Lamp: RL-51/540T5
- Replacement Quartz Dome: RQD-530
- Plumbing: 1" In/Out
- Manual Shutoff Ball Valves on In/Out Ports
- Mounted on Stainless Steel Backpanel
More From This Collection
Find the Right System for Your Home
Compare our most popular UV water treatment systems to determine the best fit based on your water usage, household size, and demand.
|
|
|
|
|

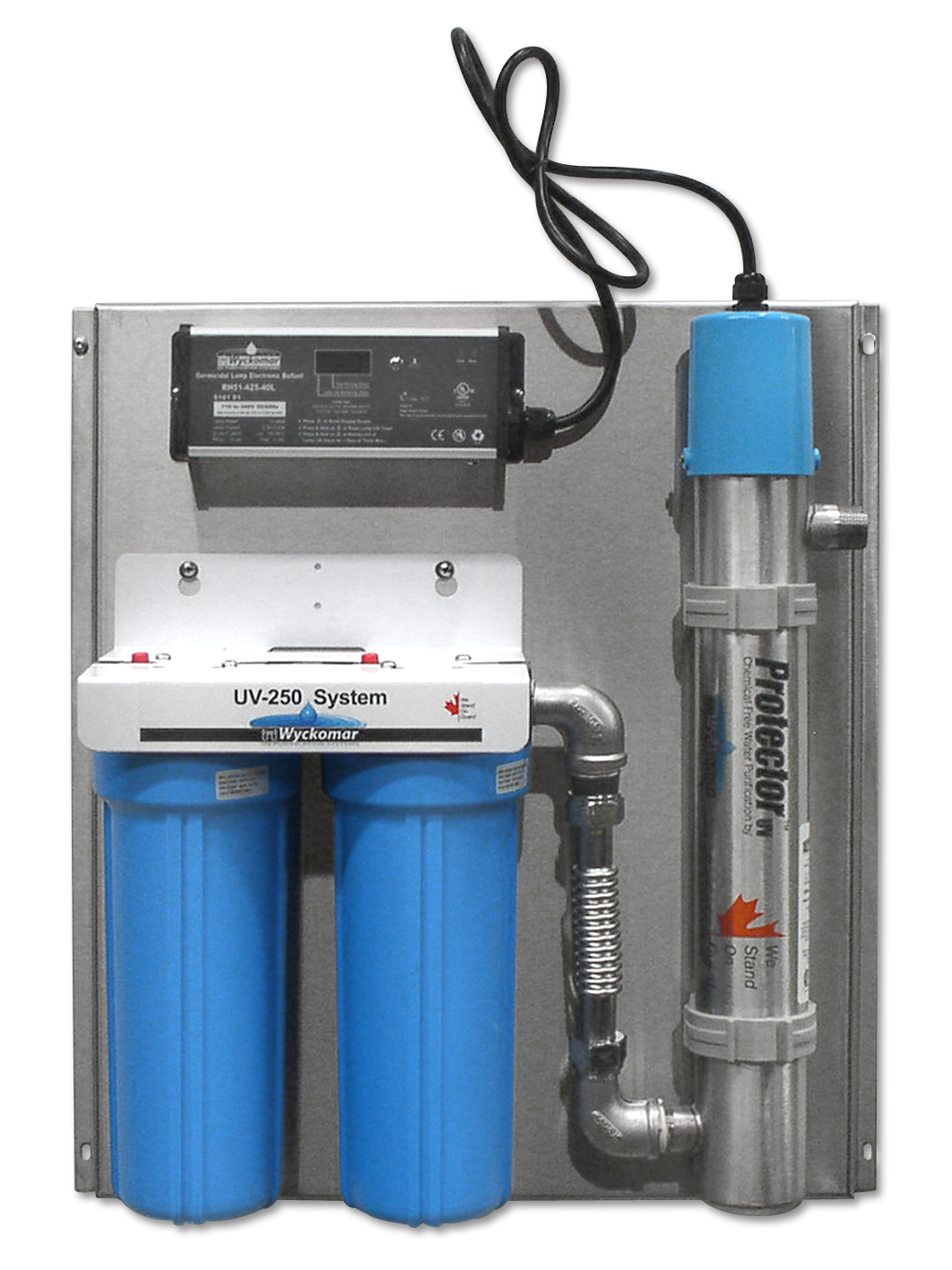

Up to 15 LPM - 4 GPM |

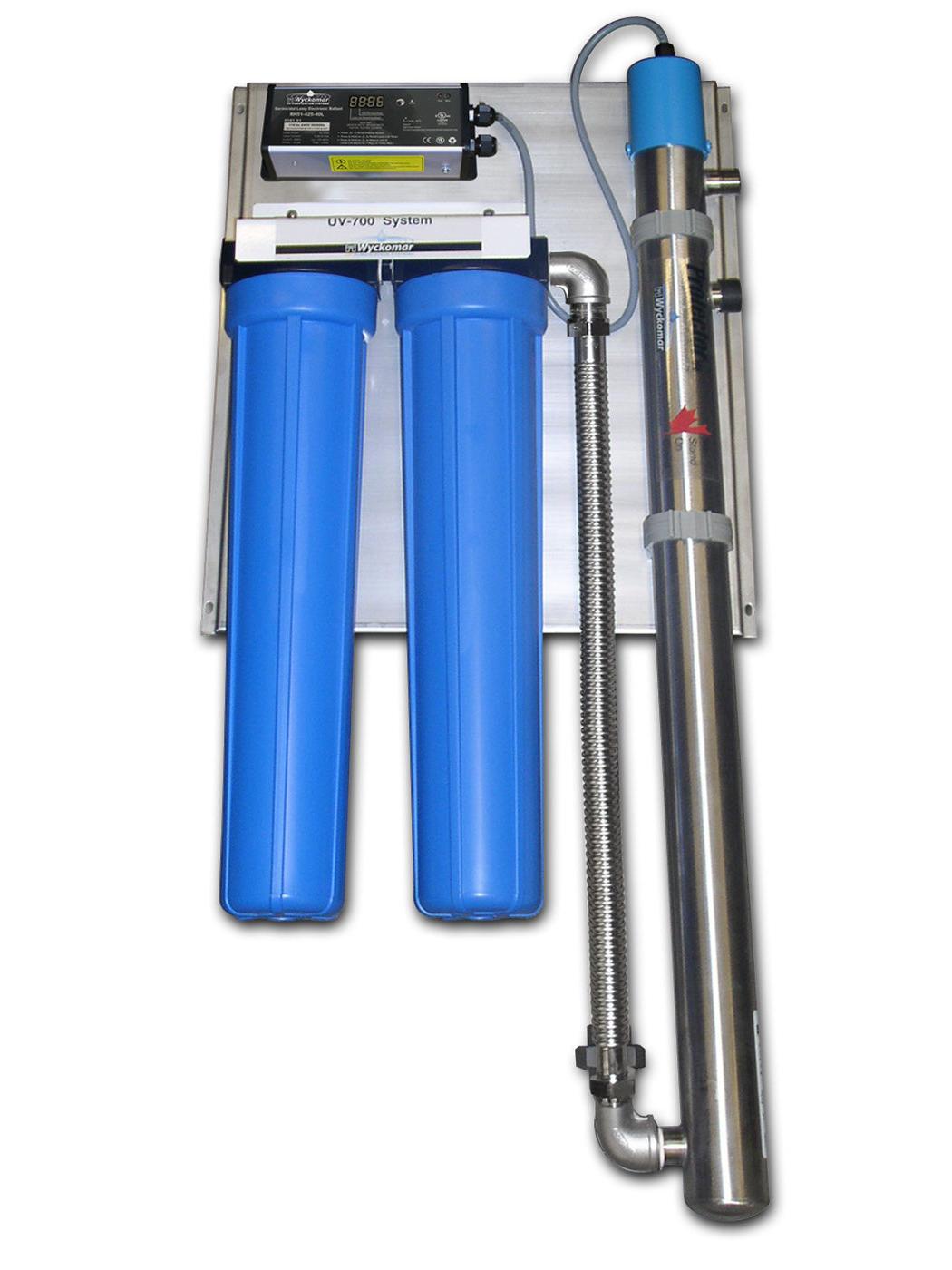

Up to 30 LPM - 8 GPM |
1400Up to 53 LPM - 14 GPM |
|
|
46 mJ/cm2 @ 95 % UVT |
49 mJ/cm2 @ 95% UVT |
40 mJ/cm2 @ 95 % UVT |
|
|
110 - 240 Volt AC / 50 - 60 Hz |
110 - 240 Volt AC / 50 - 60 Hz |
110 - 240 Volt AC / 50 - 60 Hz |
|
|
AC: Electronic Ballast w/ Lamp Out |
Electronic Ballast w/ Lamp Out |
Electronic Ballast w/ Lamp Out |
|
|
Low-Pressure UVC @23Watts, 425 mA (Part# RL-23/436T5) |
Low-Pressure UVC @40 Watts, 425 mA (Part# RL-40/867T5) |
Low-Pressure UVC @51 Watts, 800 mA (Part# RL-51/540T5) |
|
|
10" SlimLine (L 9-3/4" OD 2-1/2") w/ Pressure Relief |
20" SlimLine (L20" OD 2-1/2") w/ Pressure Relief |
10" BigBlue (L 9-3/4" OD 4-1/2") w/ Pressure Relief |
|
|
SS Flexible Hose Part # 10-FF12 |
Integrated Part # 10-FM24 |
Integrated Part# 10-FF12-1 |
|
|
3/4” MNPT In/Out |
3/4” MNPT In/Out |
1” MNPT In/Out |
