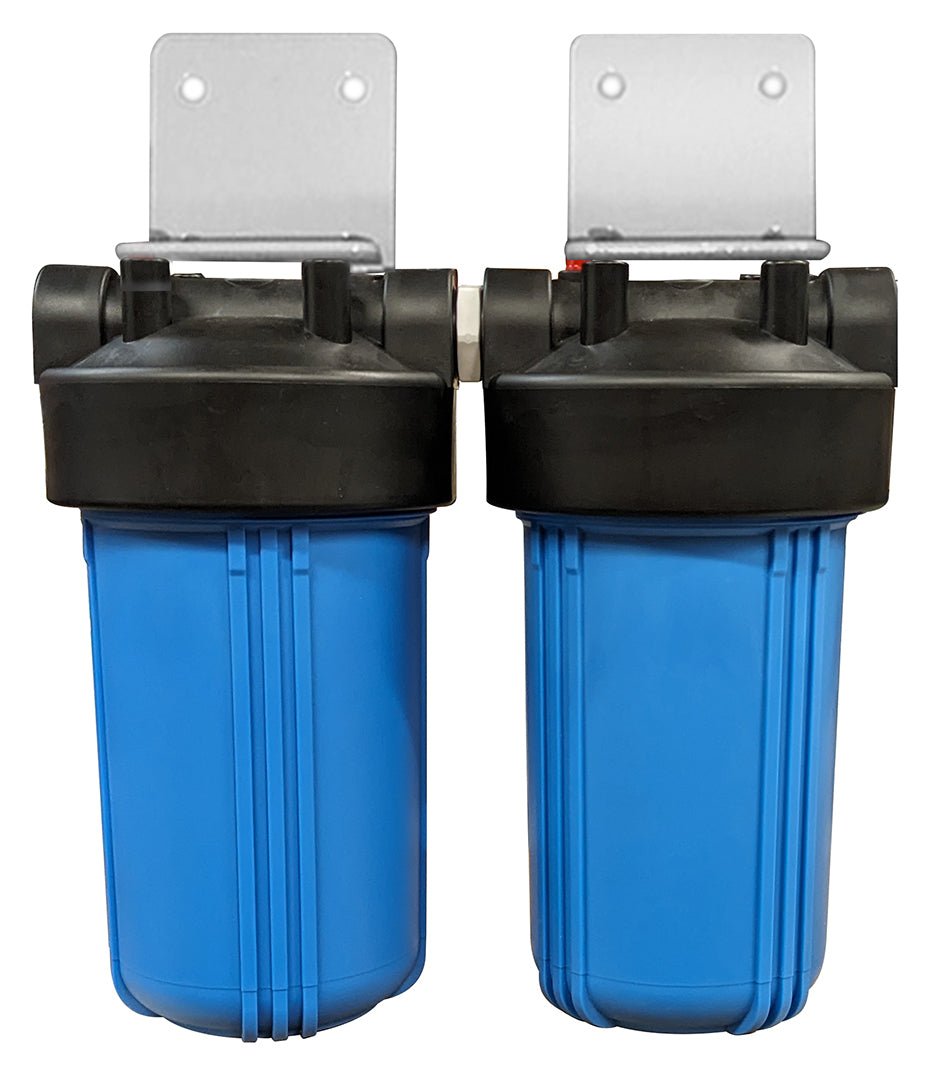

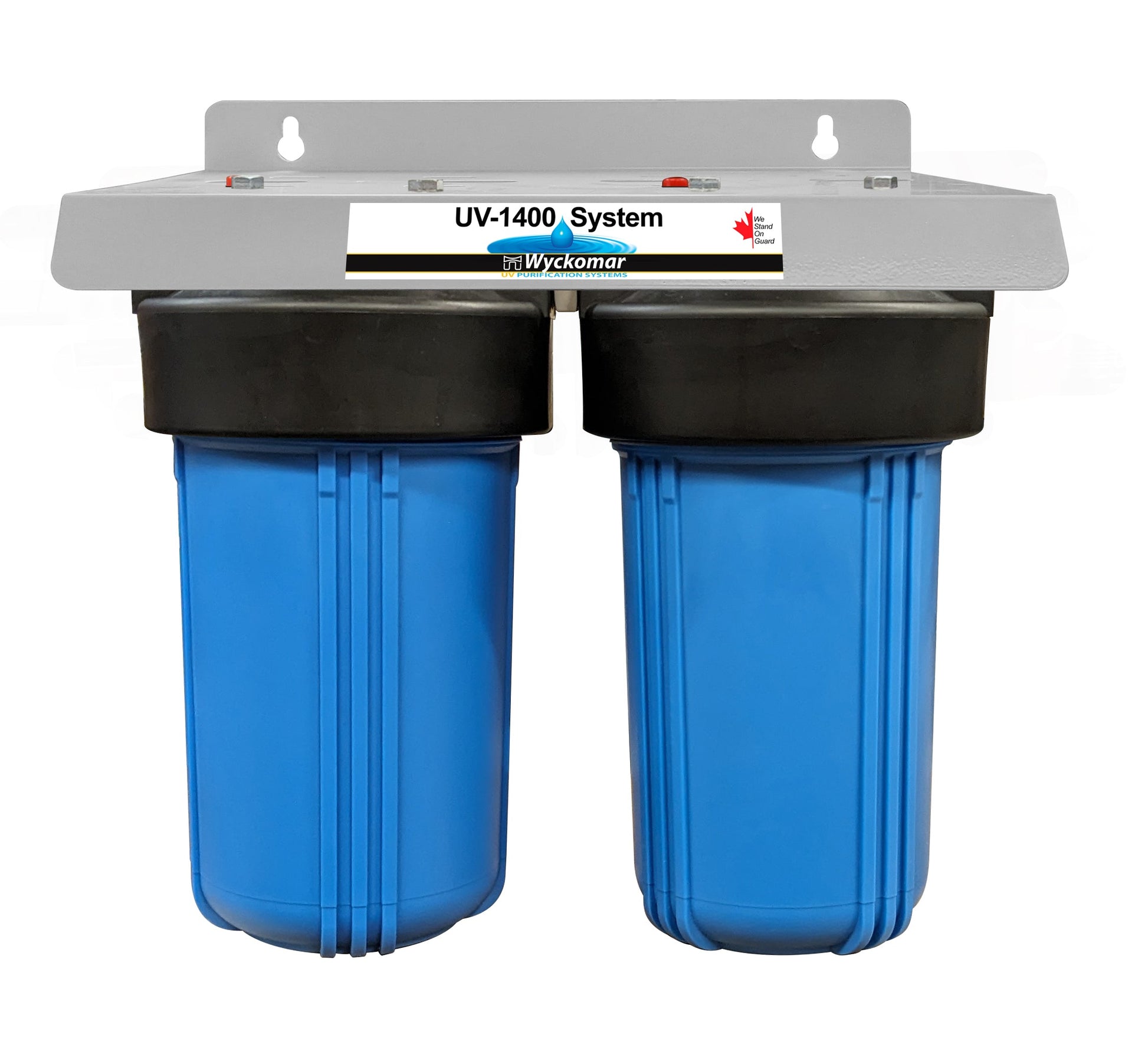

The Filter Set for 14 GPM (53 LPM) Flow that is used with the UV-1400 Sterilizer or any other application that requires pre-filtration on the micro filtration level comes with dual 10 inch BigBlue filter housings with a sediment filter for solids at 5 Micron in stage 1 and a carbon filter (carbon block or pleated carbon) for taste and odour-causing dissolved chemicals and organics in stage 2.
The Filter Set includes a mounting bracket, hardware for installation and a wrench to open the housings for filter change.
When used with the UV-1400, it comes with a stainless steel flexible S-Pipe for the connection between the Filter Set and the UV. When used with the AquaFlow Whole House Descaler, it comes with the appropriate connection fittings.
More From This Collection
The Superior | Purifier | UV1400 | UV-1400 | Wyckomar
Choose your option
The Superior | Basic System | UV1400 | SYS1400 | Wyckomar
Choose your option
The Superior | Premier System | UV1400 | SYS1400-POU-1 | Wyckomar
Choose your option
Filter Set | For The Superior | 10" BigBlue | SYS1400-FS | Wyckomar
Choose your option

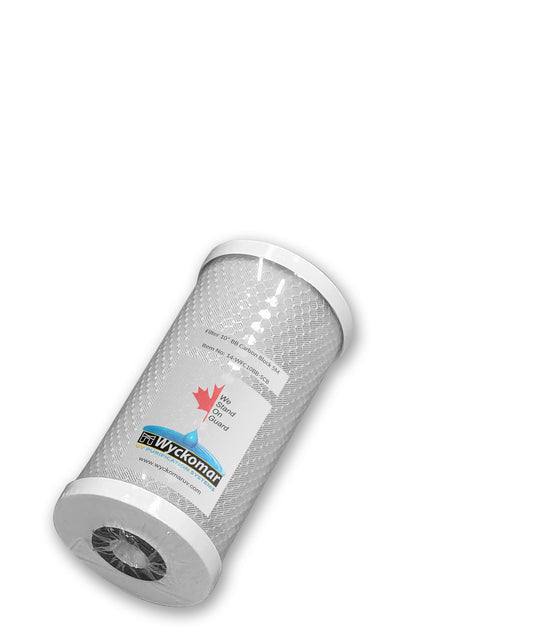

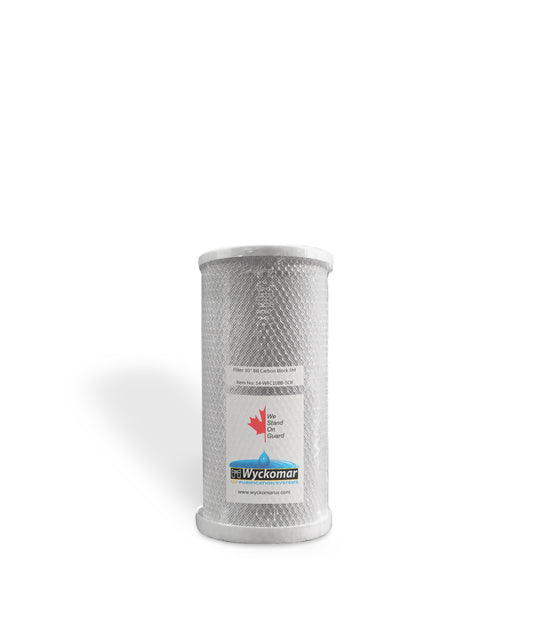

Carbon Block Filter | For The Superior | UV1400 | WFC10BB-5CB | Wyckomar
Choose your option

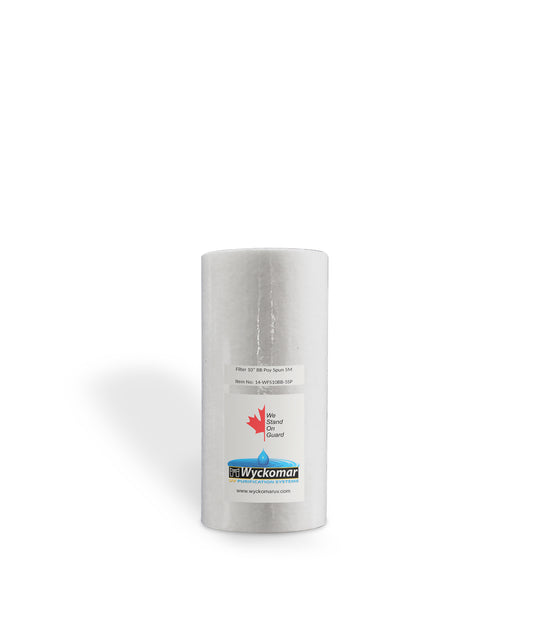

Sediment Filter | For The Superior | UV1400 | WFS10BB-5SP | Wyckomar
Choose your option
Sediment & Carbon Filters | Pack of 2 | For The Superior | 10" BigBlue | 14-10BB-SC | Wyckomar
Choose your option
Lamp | For The Superior | UV1400 | RL-51/540T5 | Wyckomar
Choose your option
Find the Right System for Your Home
Compare our most popular UV water treatment systems to determine the best fit based on your water usage, household size, and demand.
|
|
|
|
|
Up to 15 LPM - 4 GPM |
Up to 30 LPM - 8 GPM |
1400Up to 53 LPM - 14 GPM |
|
|
46 mJ/cm2 @ 95 % UVT |
49 mJ/cm2 @ 95% UVT |
40 mJ/cm2 @ 95 % UVT |
|
|
110 - 240 Volt AC / 50 - 60 Hz |
110 - 240 Volt AC / 50 - 60 Hz |
110 - 240 Volt AC / 50 - 60 Hz |
|
|
AC: Electronic Ballast w/ Lamp Out |
Electronic Ballast w/ Lamp Out |
Electronic Ballast w/ Lamp Out |
|
|
Low-Pressure UVC @23Watts, 425 mA (Part# RL-23/436T5) |
Low-Pressure UVC @40 Watts, 425 mA (Part# RL-40/867T5) |
Low-Pressure UVC @51 Watts, 800 mA (Part# RL-51/540T5) |
|
|
10" SlimLine (L 9-3/4" OD 2-1/2") w/ Pressure Relief |
20" SlimLine (L20" OD 2-1/2") w/ Pressure Relief |
10" BigBlue (L 9-3/4" OD 4-1/2") w/ Pressure Relief |
|
|
SS Flexible Hose Part # 10-FF12 |
Integrated Part # 10-FM24 |
Integrated Part# 10-FF12-1 |
|
|
3/4” MNPT In/Out |
3/4” MNPT In/Out |
1” MNPT In/Out |
