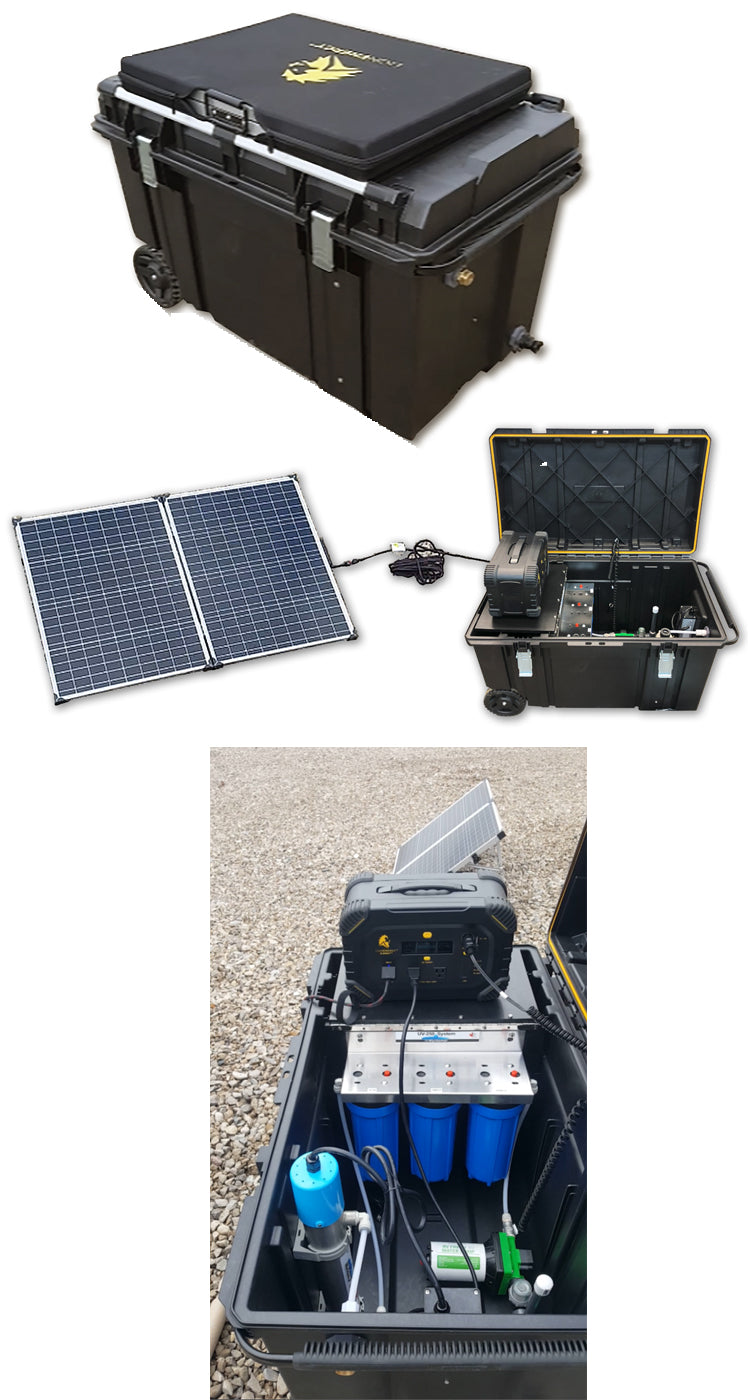

Solar Tote | UV250 | SYS250-Tote | Off Grid Portable System | Wyckomar
Solar Tote | UV250 | SYS250-Tote | Off Grid Portable System | Wyckomar
Interested in becoming a dealer? Click here to learn more.
Share this product
Overview
Overview
Specifications
Specifications
- Flow Rate: (limited by pump and filter selection)
- up to 2.6 GPM / 10 LPM
- up to 2.6 GPM / 10 LPM

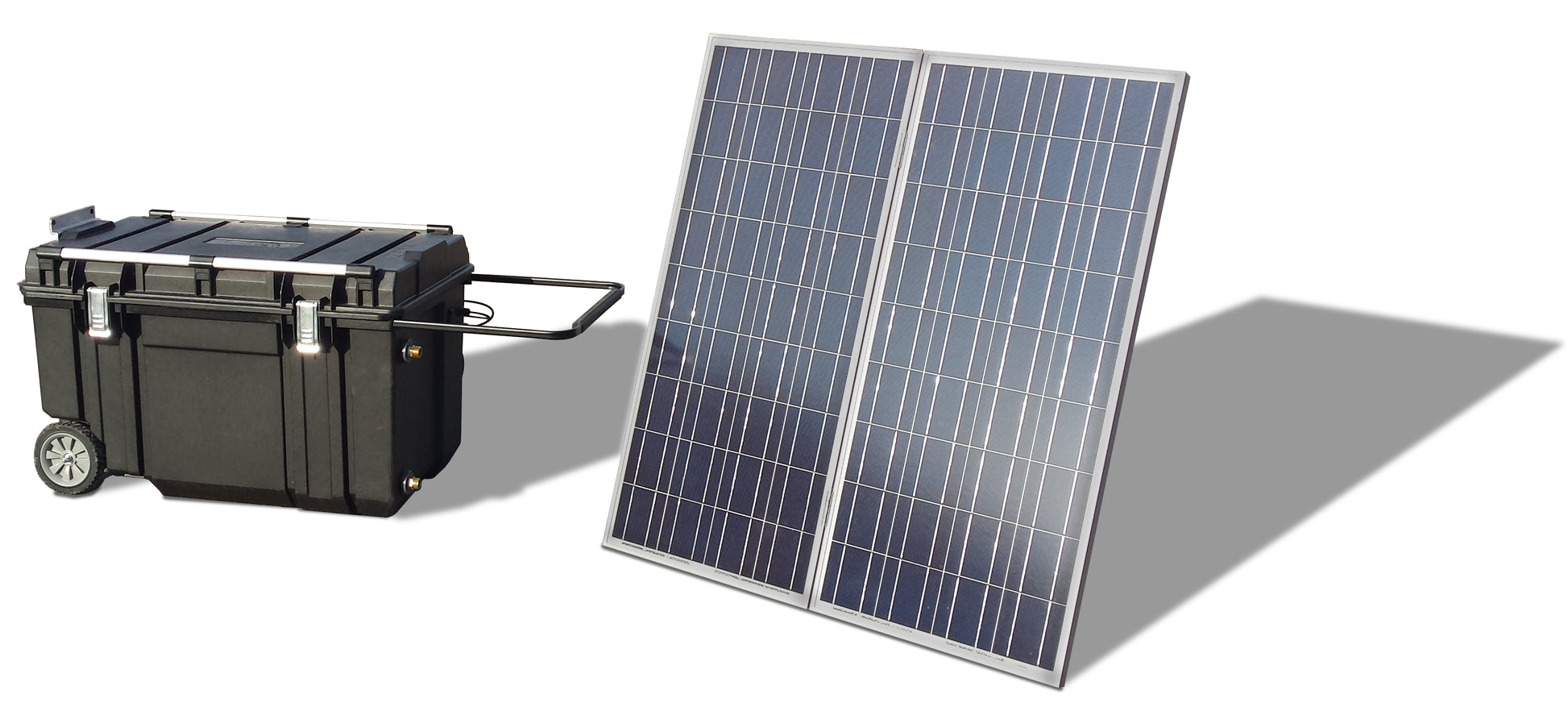

- Solar Panels: 2 x 50 Watt Hinged for 100 Watt
- Generator: Lithium Iron Phosphate Solar Generator 665 Watt Hours / 530 Watts
- Filtration System: 10" SlimLine
- Sediment Filter: 20 Micron Pleated
- Sediment Filter: 5 Micron PolySpun
- Carbon Filter: 5 Micron Carbon Block
- Electronic Ballast: 4-BE800-ECO
- UV Replacement Lamp: RL-44/436T5
- Replacement Quartz Dome: RQD-438
- Plumbing: 3/4" Garden Hose Connection In/Out

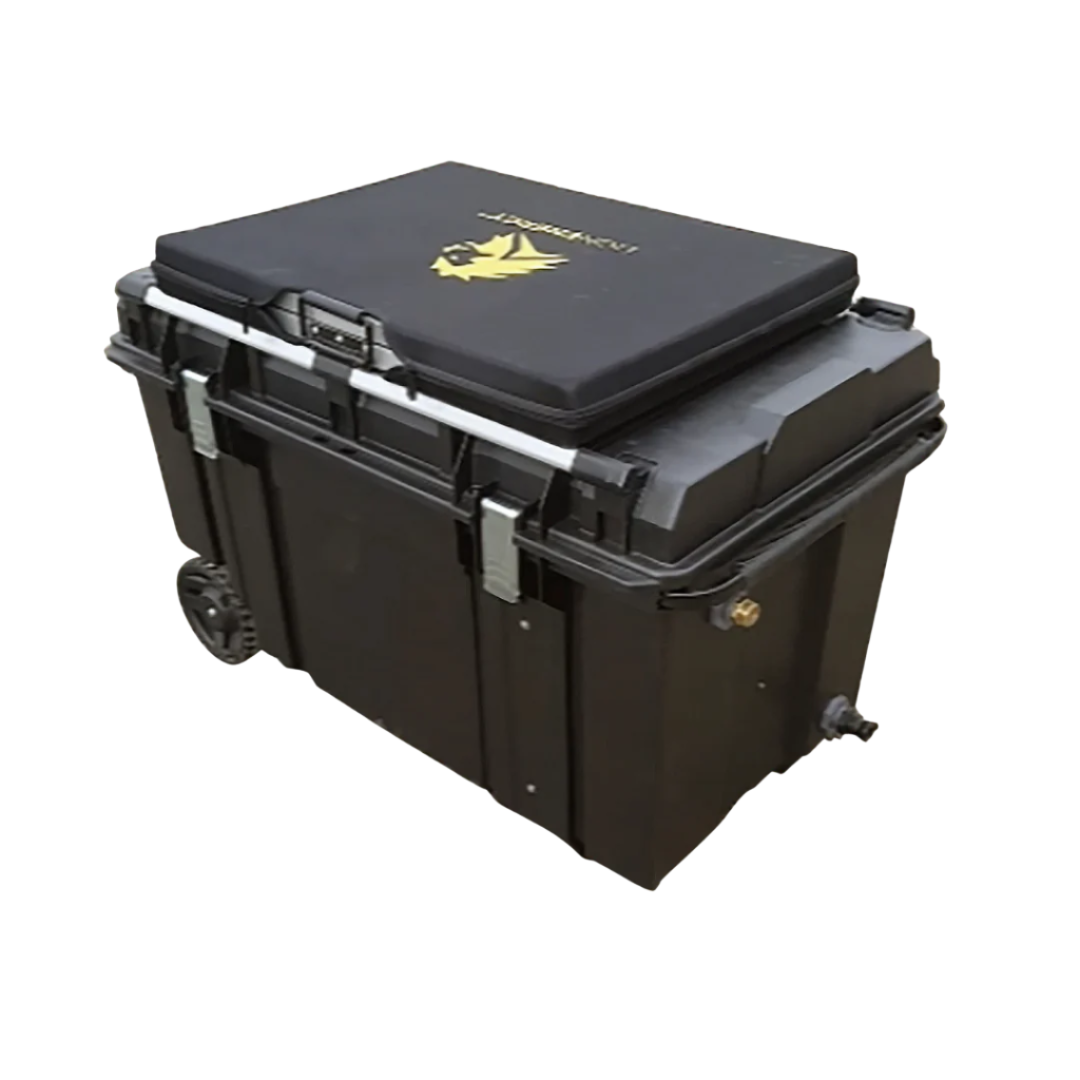

- All components inside wheeled tough-tote box
More From This Collection
Solar Tote | UV250 | SYS250-Tote | Off Grid Portable System | Wyckomar
Choose your option

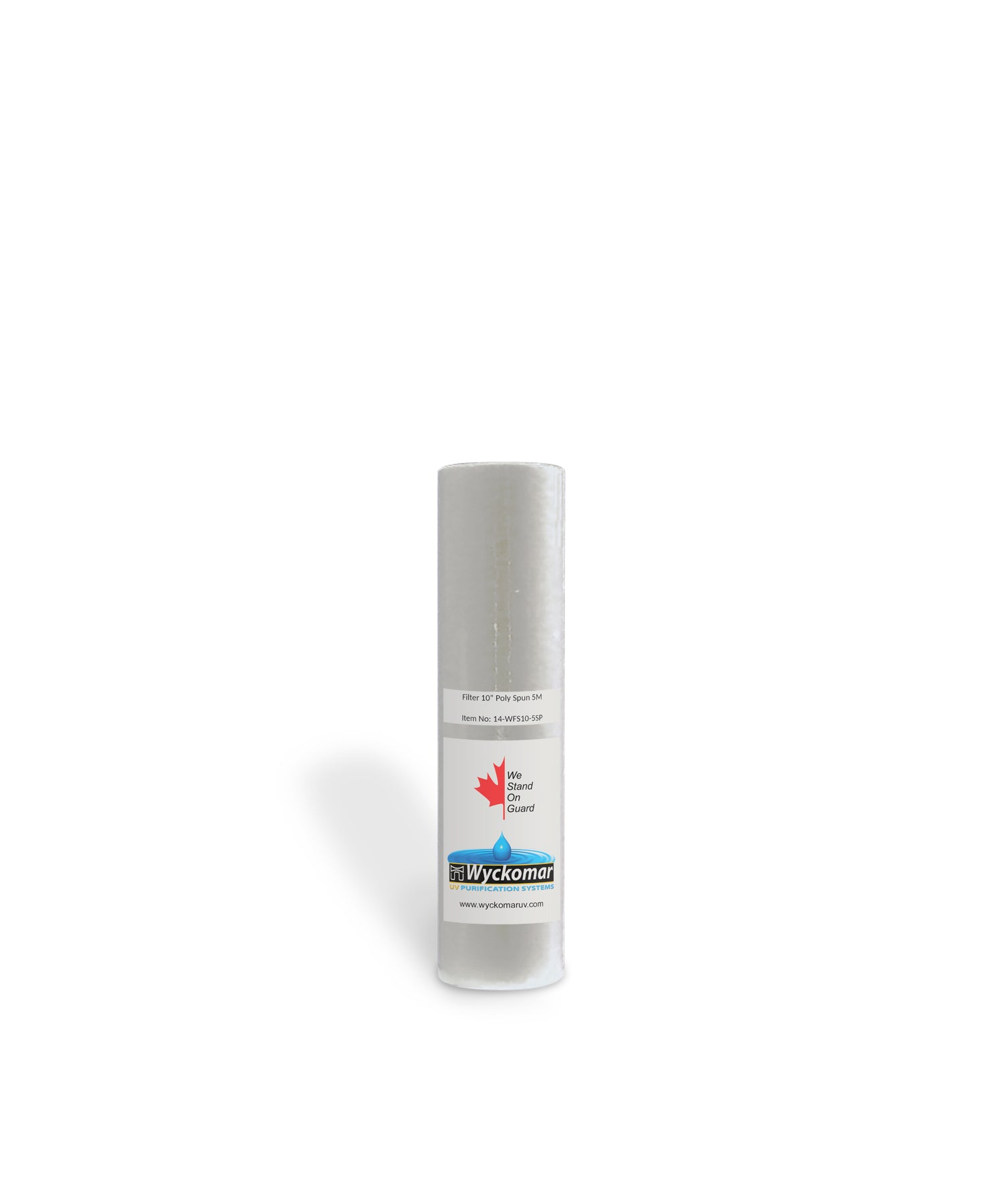

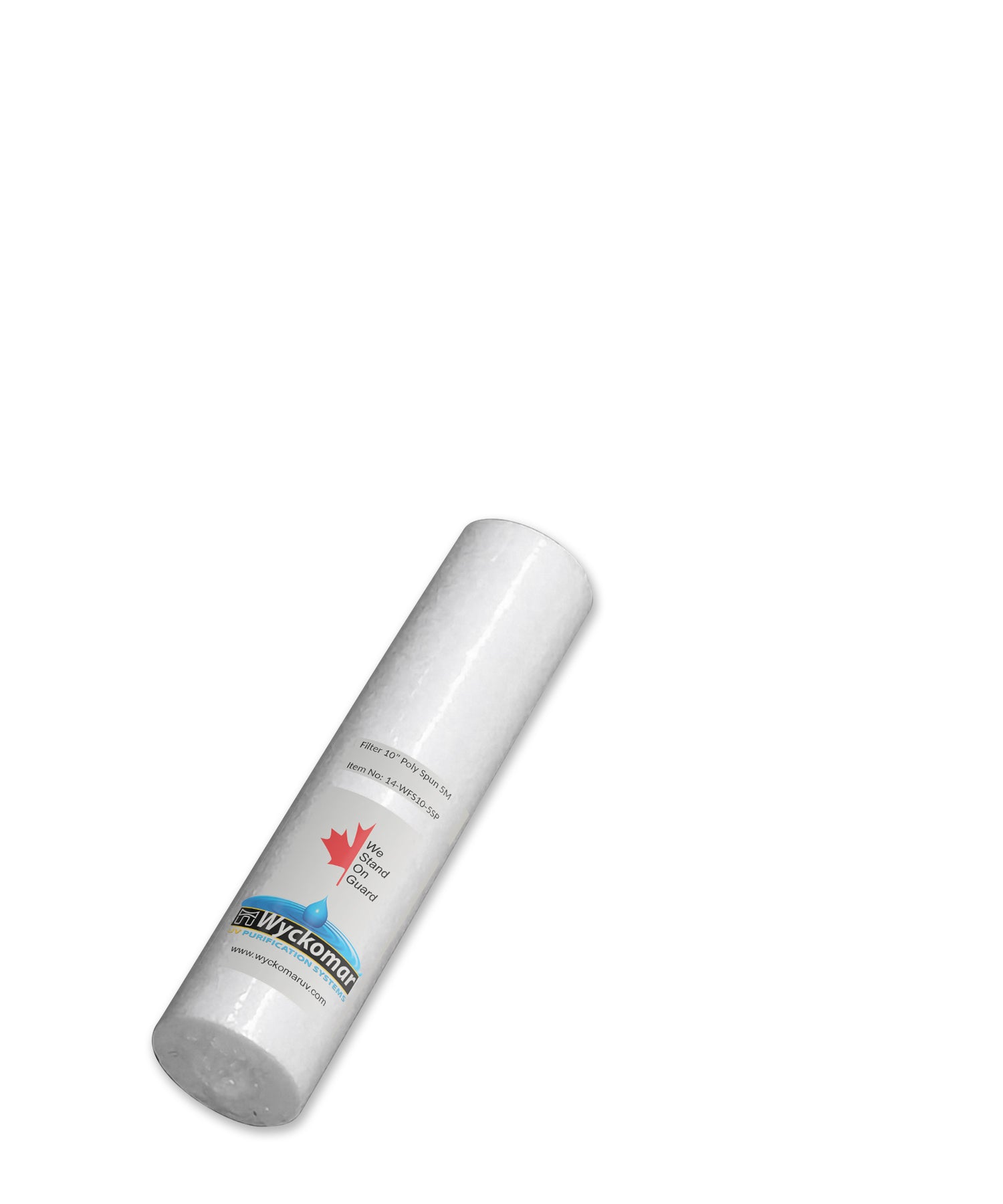

Sediment Filter | For The Athabasca, The Huron & Solar Tote | UV1, UV250 | WFS10-5SP | Wyckomar
Choose your option
WFC10-20PLx3 / WFS10-5SPx3 / WFC10-5CBx3

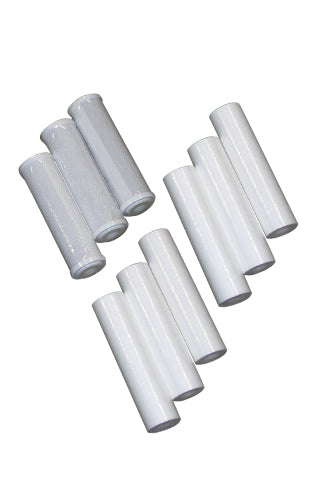

Sediment & Carbon Block Filters | Pack of 9 | 10" SlimLine | Wyckomar
Choose your option
Lamp | For The Solar Tote | UV250-HO | RL-44/436TS | Wyckomar
Choose your option
Find the Right System for Your Home
Compare our most popular UV water treatment systems to determine the best fit based on your water usage, household size, and demand.
|
|
|
|
|
Up to 15 LPM - 4 GPM |
Up to 30 LPM - 8 GPM |
1400Up to 53 LPM - 14 GPM |
|
|
46 mJ/cm2 @ 95 % UVT |
49 mJ/cm2 @ 95% UVT |
40 mJ/cm2 @ 95 % UVT |
|
|
110 - 240 Volt AC / 50 - 60 Hz |
110 - 240 Volt AC / 50 - 60 Hz |
110 - 240 Volt AC / 50 - 60 Hz |
|
|
AC: Electronic Ballast w/ Lamp Out |
Electronic Ballast w/ Lamp Out |
Electronic Ballast w/ Lamp Out |
|
|
Low-Pressure UVC @23Watts, 425 mA (Part# RL-23/436T5) |
Low-Pressure UVC @40 Watts, 425 mA (Part# RL-40/867T5) |
Low-Pressure UVC @51 Watts, 800 mA (Part# RL-51/540T5) |
|
|
10" SlimLine (L 9-3/4" OD 2-1/2") w/ Pressure Relief |
20" SlimLine (L20" OD 2-1/2") w/ Pressure Relief |
10" BigBlue (L 9-3/4" OD 4-1/2") w/ Pressure Relief |
|
|
SS Flexible Hose Part # 10-FF12 |
Integrated Part # 10-FM24 |
Integrated Part# 10-FF12-1 |
|
|
3/4” MNPT In/Out |
3/4” MNPT In/Out |
1” MNPT In/Out |
