Model UV-5007 | P5007/QS4E-1/2

Name: Model UV-5007 | P5007/QS4E-1/2
Brand: Wyckomar Canada Inc
Price: 14300.0 USD
Availability: InStock

$14,300.00 USD

Sale Sold out

Shipping calculated at checkout.

Flow Range: 29 - 383 GPM / 110 - 1,450 LPM
Chamber Material: 316L SS
UV Dose (70% UVT):
- 30 mJ/cm2 at 198 GPM / 750 LPM,
- 40 mJ/cm2 at 152 GPM / 575 LPM
- 200 mJ/cm2 at 29 GPM / 110 LPM
UV Dose (95% UVT):
- 40 mJ/cm2 at 383 GPM / 1,450 LPM
Monitoring System: Included
UV Replacement Lamp: RL-110/1197T5
Replacement Quartz Sleeve: RQS-1181
Plumbing: 3" Flange In/Out

Product variants

Quantity

More info (Specifications Sheet, Technical Drawing, Technology Overview) can be downloaded here

View full details

Description

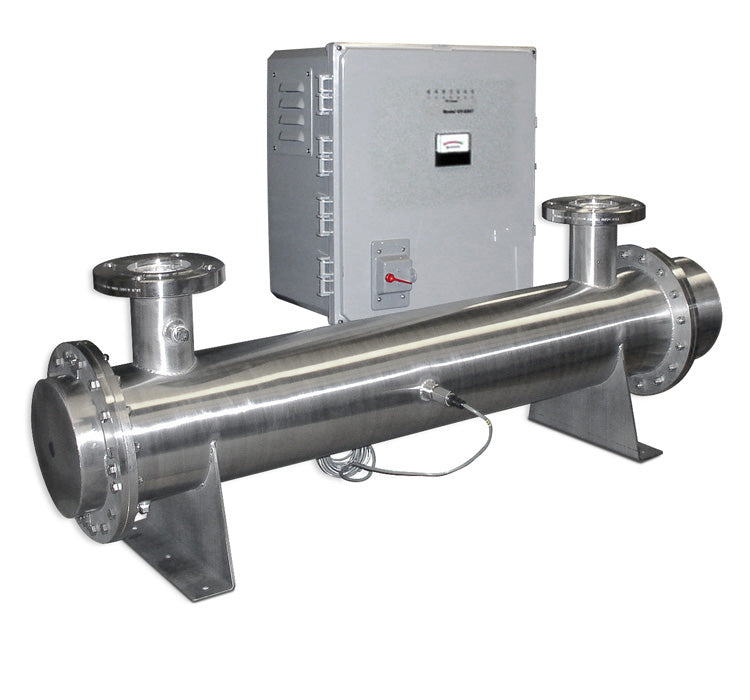

The UV-5007 System is a robust, efficient and cost-effective sterilizer designed for the disinfection of drinking and/or process water in commercial and industrial applications. The UV-5007 System contains an array of 7 low-pressure, high output UV lamps in a 316L stainless steel reaction chamber. It is equipped with a control panel that has an integrated UV Monitor to monitor the UV light intensity in real time. The UV monitor will alarm if the UV power delivered to the water is inadequate. A powered contact on the monitor can be used to drive a solenoid-type valve to shut off the flow of water.

The UV-5007 sterilizer will purify the water from most common contaminants. Bacterial, viral and other pathogens are inactivated by a high intensity UV dose that kills harmful microorganisms such asE. coliandGiardiaat a 99.99% kill rate.

Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae and many more.

(See comprehensive UV Inactivation Chart)
