Overview

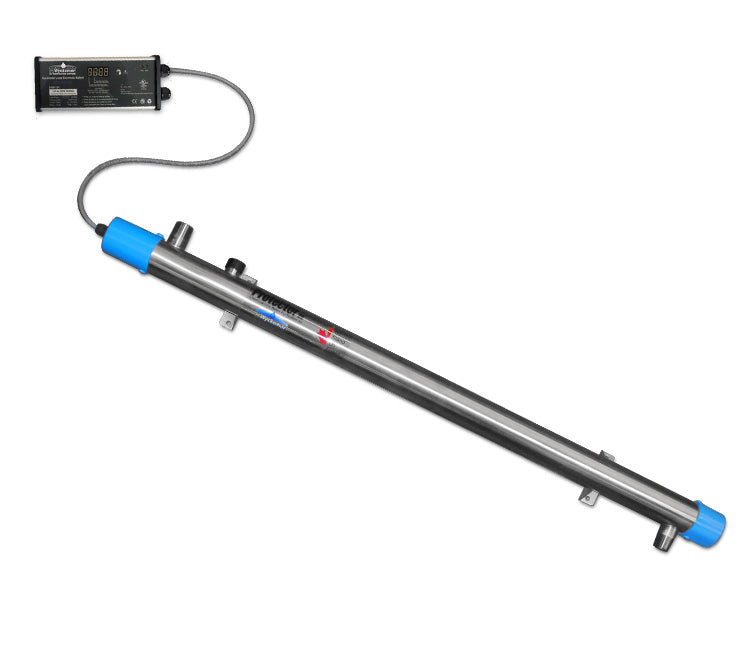

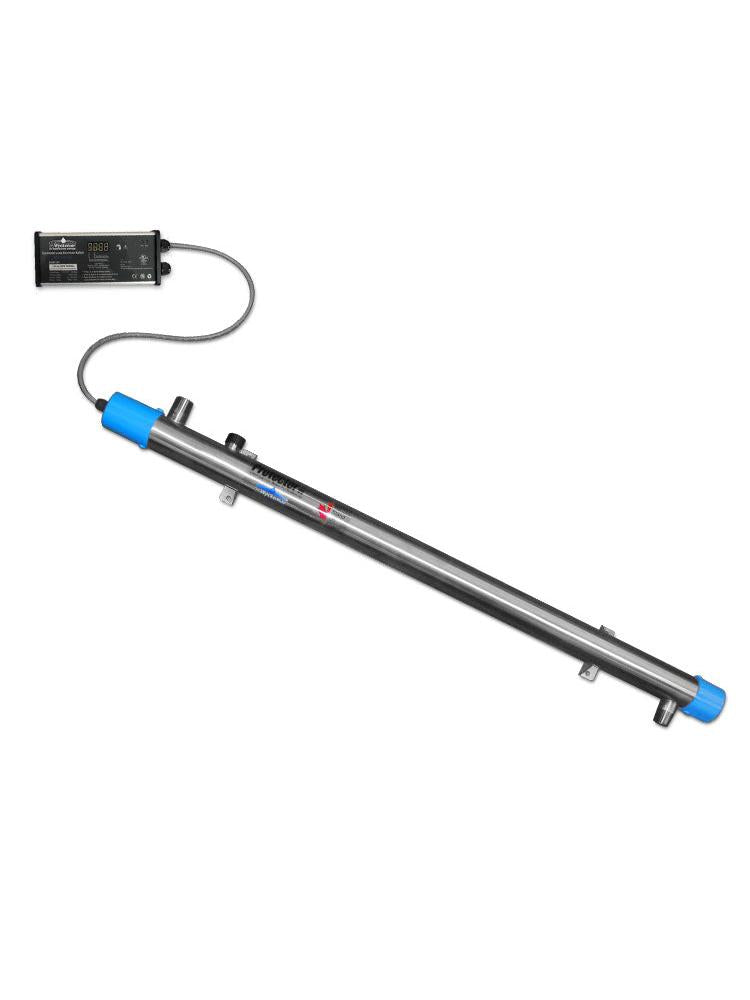

The UV-1500 is a robust, high quality ultra-violet sterilizer that offers very efficient treatment at a low cost per unit volume. Typically installed at the point of entry, it can treat municipal water as well as ground water from drilled or dug wells, or surface water from lakes, ponds or rivers (pre-filtration necessary). This sterilizer is perfectly sized to provide drinking water and purified process water for large houses and mansions, as well as for commercial and light industrial applications.

The UV-1500 sterilizer will purify the water from most common contaminants. Bacterial, viral and other pathogens are inactivated by a high intensity UV dose that kills harmful microorganisms such as E. coli and Giardia at a 99.99% kill rate.

Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more.
(See comprehensive UV Inactivation Chart)

Specifications

Flow Range: 17.9 - 44.3 GPM / 68 - 160 LPM
Chamber Material: 316L SS
UV Dose (95% UVT):
- 16 mJ/cm2 at 44.3 GPM / 168 LPM,
- 30 mJ/cm2 at 24.7 GPM / 92 LPM,
- 40 mJ/cm2 at 17.9 GPM / 68 LPM
Monitoring System: Optional
Electronic Ballast w/ Operation Count: 4-BE800-ECO
UV Replacement Lamp: RL-110/1197T5
Replacement Quartz Sleeve: RQS-1181
Plumbing: 1" MNPT In/Out (25 mm BSP optional)

The Muskoka | Purifier | UV1500 | UV-1500 | Wyckomar

The Muskoka | Purifier | UV1500 | UV-1500 | Wyckomar

Field-tested
Quality Engineered
Warrantied

Pricing available through our dealer network — sign in to access your account.
Interested in becoming a dealer? Click here to learn more.

$816.00 USD

$816.00 USD

Shipping calculated at checkout.

Are you a customer looking to purchase?

Click here to find your nearest wyckomar dealer

Overview

The UV-1500 is a robust, high quality ultra-violet sterilizer that offers very efficient treatment at a low cost per unit volume. Typically installed at the point of entry, it can treat municipal water as well as ground water from drilled or dug wells, or surface water from lakes, ponds or rivers (pre-filtration necessary). This sterilizer is perfectly sized to provide drinking water and purified process water for large houses and mansions, as well as for commercial and light industrial applications.

The UV-1500 sterilizer will purify the water from most common contaminants. Bacterial, viral and other pathogens are inactivated by a high intensity UV dose that kills harmful microorganisms such as E. coli and Giardia at a 99.99% kill rate.

Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae
and many more.
(See comprehensive UV Inactivation Chart)

Specifications

Flow Range: 17.9 - 44.3 GPM / 68 - 160 LPM
Chamber Material: 316L SS
UV Dose (95% UVT):
- 16 mJ/cm2 at 44.3 GPM / 168 LPM,
- 30 mJ/cm2 at 24.7 GPM / 92 LPM,
- 40 mJ/cm2 at 17.9 GPM / 68 LPM
Monitoring System: Optional
Electronic Ballast w/ Operation Count: 4-BE800-ECO
UV Replacement Lamp: RL-110/1197T5
Replacement Quartz Sleeve: RQS-1181
Plumbing: 1" MNPT In/Out (25 mm BSP optional)

The Muskoka | Purifier | UV1500 | UV-1500 | Wyckomar

The Muskoka | Purifier | UV1500 | UV-1500 | Wyckomar

$816.00 USD

$816.00 USD

Wyckomar Canada Inc | Whole Home Water Treatment Systems

Wyckomar Canada Inc | Whole Home Water Treatment Systems

Wyckomar Canada Inc | Whole Home Water Treatment Systems

3D Model

More From This Collection

The Muskoka | Purifier | UV1500 | UV-1500 | Wyckomar

The Muskoka | Purifier | UV1500 | UV-1500 | Wyckomar

$816.00 USD

$816.00 USD

Pricing available through our dealer network — sign in to access your account.

Wyckomar SYS1500

The Muskoka | Basic System | UV1500 | SYS1500 | Wyckomar

The Muskoka | Basic System | UV1500 | SYS1500 | Wyckomar

$1,224.00 USD

$1,224.00 USD

Pricing available through our dealer network — sign in to access your account.

Lamp | For The Muskoka | UV1500, UV5000 and UV5007 | RL-110/1197T5 | Wyckomar

Lamp | For The Muskoka | UV1500, UV5000 and UV5007 | RL-110/1197T5 | Wyckomar

$130.00 USD

$130.00 USD

Pricing available through our dealer network — sign in to access your account.

Quartz Sleeve | For The Muskoka | UV1500 | RQS-1181 | Wyckomar

Quartz Sleeve | For The Muskoka | UV1500 | RQS-1181 | Wyckomar

$70.00 USD

$70.00 USD

Pricing available through our dealer network — sign in to access your account.

	The Huron \| Premier System \| UV250 \| SYS250-POU-1 \| Wyckomar Shop	The Ontario \| Premier System \| UV700 \| SYS700-POU-1 \| Wyckomar Shop	The Superior \| Premier System \| UV1400 \| SYS1400-POU-1 \| Wyckomar Shop
Rated Flow	Up to 15 LPM - 4 GPM	Up to 30 LPM - 8 GPM	1400Up to 53 LPM - 14 GPM
Initial UV Dose at Rated Flow	46 mJ/cm2 @ 95 % UVT	49 mJ/cm2 @ 95% UVT	40 mJ/cm2 @ 95 % UVT
Electrical	110 - 240 Volt AC / 50 - 60 Hz 12 / 24 V DC	110 - 240 Volt AC / 50 - 60 Hz	110 - 240 Volt AC / 50 - 60 Hz
Ballast	AC: Electronic Ballast w/ Lamp Out Alarm, Power LED, Count of Total Running Days on LCD Display (Resettable) Model RH51-425-40L Part# 4-BE-425-ECO-R DC: Ballast Part # 4-BE12V-P250	Electronic Ballast w/ Lamp Out Alarm, Power LED Count of Total Running Days on LCD Display (Resettable) Model RH51-425-40L Part# 4-BE-425-ECO-R	Electronic Ballast w/ Lamp Out Alarm, Power LED, Count of Total Running Days on LCD Display (Resettable) Model RH51-800-95L (Part # 4-BE800-14/30ECO
UV Lamp	Low-Pressure UVC @23Watts, 425 mA (Part# RL-23/436T5)	Low-Pressure UVC @40 Watts, 425 mA (Part# RL-40/867T5)	Low-Pressure UVC @51 Watts, 800 mA (Part# RL-51/540T5)
Filtration	10" SlimLine (L 9-3/4" OD 2-1/2") w/ Pressure Relief	20" SlimLine (L20" OD 2-1/2") w/ Pressure Relief	10" BigBlue (L 9-3/4" OD 4-1/2") w/ Pressure Relief
S Pipe	SS Flexible Hose Part # 10-FF12	Integrated Part # 10-FM24	Integrated Part# 10-FF12-1
Plumbing	3/4” MNPT In/Out	3/4” MNPT In/Out	1” MNPT In/Out
