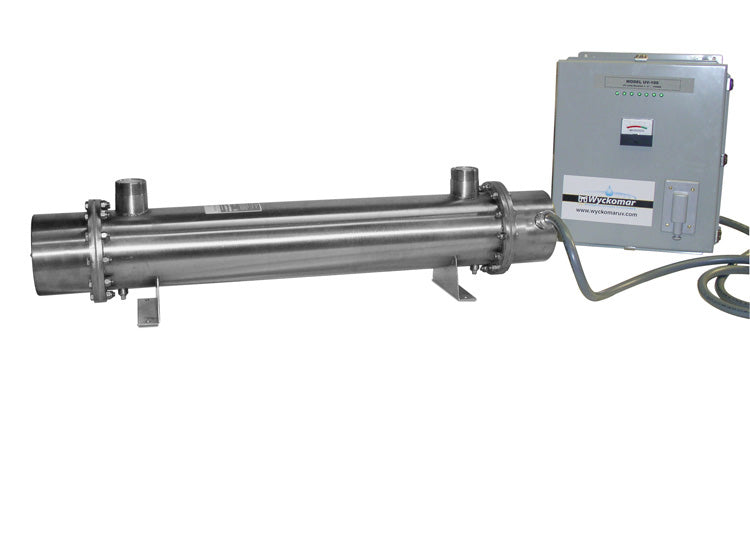

Model UV-100 | P100/QD4E-1/2

The UV-100 System is a small footprint, robust, efficient and cost-effective sterilizer designed for the disinfection of drinking and/or process water in commercial and industrial applications. The UV-100 System contains an array of 6 low-pressure, high output UV lamps in a 316L stainless steel reaction chamber. It is equipped with a control panel that has an integrated UV Monitor to monitor the UV light intensity in real time. The UV monitor will alarm if the UV power delivered to the water is inadequate. A powered contact on the monitor can be used to drive a solenoid-type valve to shut off the flow of water.

The UV-100 sterilizer will purify the water from most common contaminants. Water borne pathogens are inactivated by a high intensity UV dose that kills harmful microorganisms such as E. coli and Giardia at a 99.99% kill rate.

Reducing the flow rate will provide an enhanced UV dose of up to 200 mJ/cm2 for virus and fungi inactivation.

Pathogens that are inactivated by this UV sterilizer:
Anthrax, Chlorella, Clostridium, Coxsackie, Cryptosporidium parvum, E. coli, Giardia lamblia, Hepatitis, Influenza, Legionella, Listeria, Micrococcus, Paramecium, Polio, Pseudomonas, Salmonella, Shigella, Streptococcus, Toxoplasma, Vibrio cholerae and many more.

(See comprehensive UV Inactivation Chart)
